Hridz 4-in-2 HDMI Video Switcher 1080P@60Hz | Live Streaming Mixer Station with PIP, OBS Support & Type-C Capture Port

Take your live production to the next level with the Hridz HDMI Video Switcher. Designed for content creators, educators, broadcasters, and event professionals, this seamless 4-in-2 switcher delivers broadcast-quality 1080P@60Hz output with zero-compromise switching — all in a compact, backlit control unit.

---

**Why Choose the Hridz HDMI Live Switcher?**

Whether you're producing a church live stream, hosting a corporate event, recording school courseware, or running a multi-camera interview setup, this switcher handles it all. With 4 HDMI inputs and 2 HDMI outputs, you can monitor and broadcast simultaneously while keeping full control of your signal chain.

---

**Key Features**

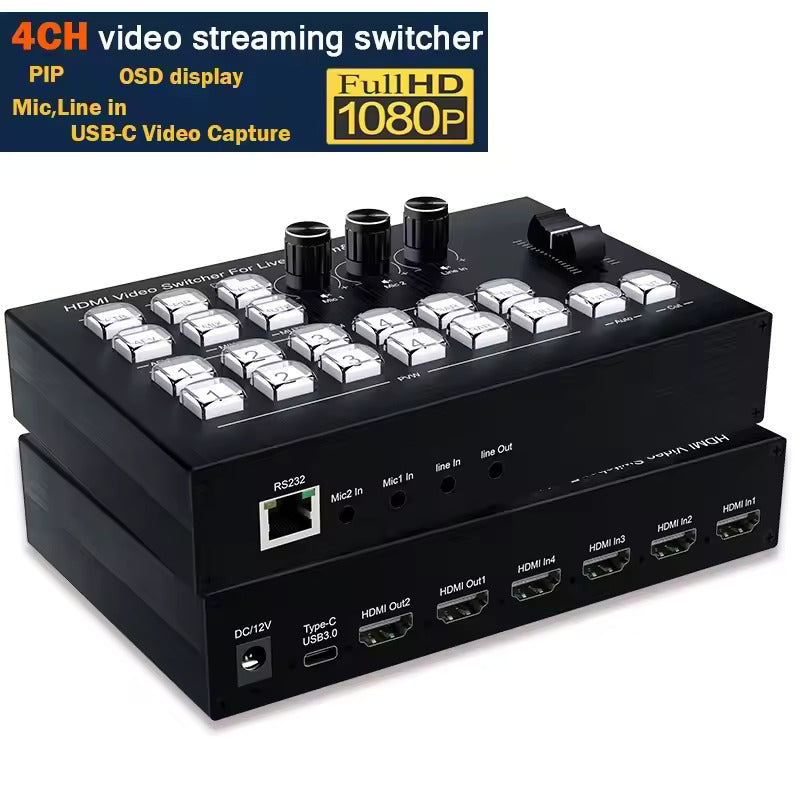

- **4 HDMI Inputs / 2 HDMI Outputs** — Switch between up to 4 sources and output to 2 displays or recording devices simultaneously
- **1080P@60Hz Input & Output** — Crisp, full HD resolution with automatic input signal adaptation
- **Type-C 3.0 Capture Port** — Plug directly into your PC or Mac for seamless OBS, Streamlabs, or any capture software integration (YUY2 & JPEG formats supported)
- **Picture-in-Picture (PIP) Support** — Display PGM (Program) and PVW (Preview) side by side for professional monitoring
- **HDCP 1.4 Compliant** — Compatible with protected HDMI sources
- **Flexible Audio Mixing** — Supports MIC, LINE IN, LINE OUT, and HD embedded audio; PCM audio format with fixed PGM audio follow

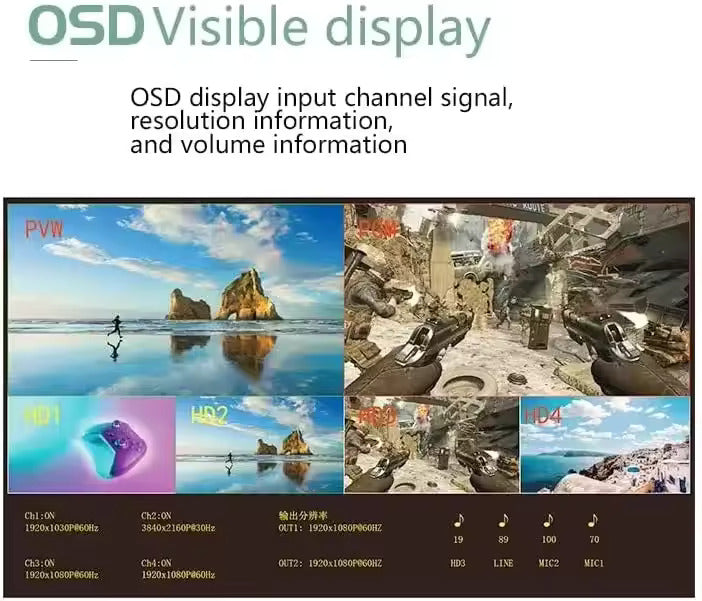

- **OSD Display** — On-screen display of input channel, resolution, and volume information
- **Power-Off Memory** — Settings are saved automatically when powered off
- **Backlit Key Design** — High-quality color backlit buttons for easy use in low-light environments

---

**Perfect For**

✔ YouTube & Twitch Live Streaming
✔ Church & House of Worship Broadcasts
✔ Corporate Presentations & Conferences
✔ School & University Courseware Recording
✔ Outdoor Events & Interviews
✔ Multi-Camera Studio Production

---

**Technical Specifications**

| Spec | Detail |
|---|---|
| HDMI Input Resolution | 1080P @ 60Hz |
| HDMI Output Resolution | 1080P @ 60Hz (1920x1080) |
| Capture Port | Type-C 3.0 (YUY2, JPEG) |
| Audio Format | PCM |
| Max Bandwidth | 148.5 MHz |
| Max Transmission Rate | 1.65 x 3Gbps |
| Cable Length (In/Out) | ≤15m (AWG26 Standard HDMI) |
| Power Supply | AC 100–240V / DC 12V 2A |
| Operating Temperature | -15°C to +55°C |
| Dimensions | 180 x 115 x 52 mm |

---

**What's in the Box**

- 1x Hridz 4-in-2 HDMI Video Switcher
- 1x 1M Type-C USB 3.0 to USB-A 3.0 Cable (10Gbps)
- 1x DC 12V Power Adapter (AU Plug)
- 1x User Manual

---

⚠️ **Important Note:** This switcher requires standard native HDMI connections on all inputs and outputs. HDMI converters or adapters are not supported.
